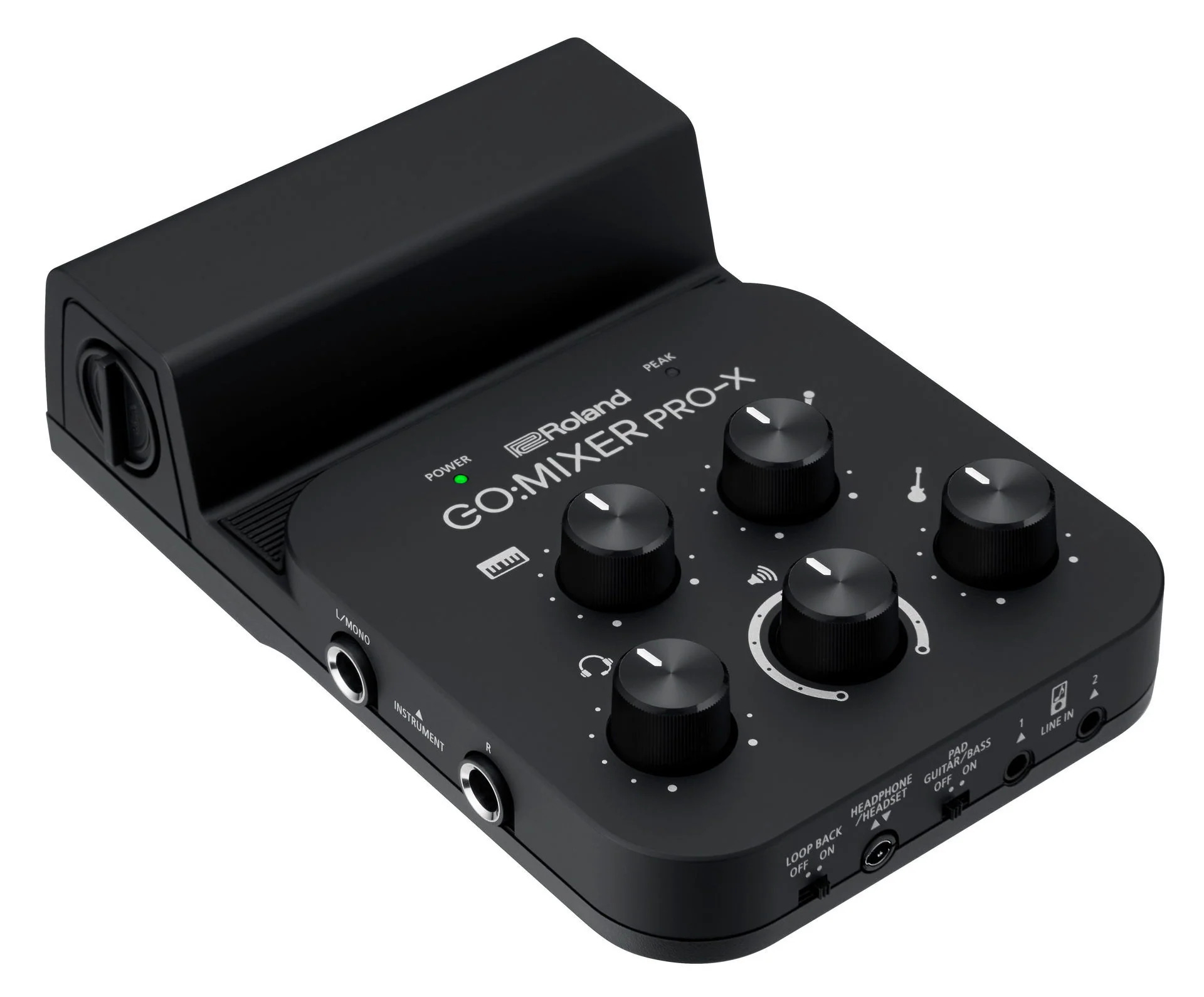

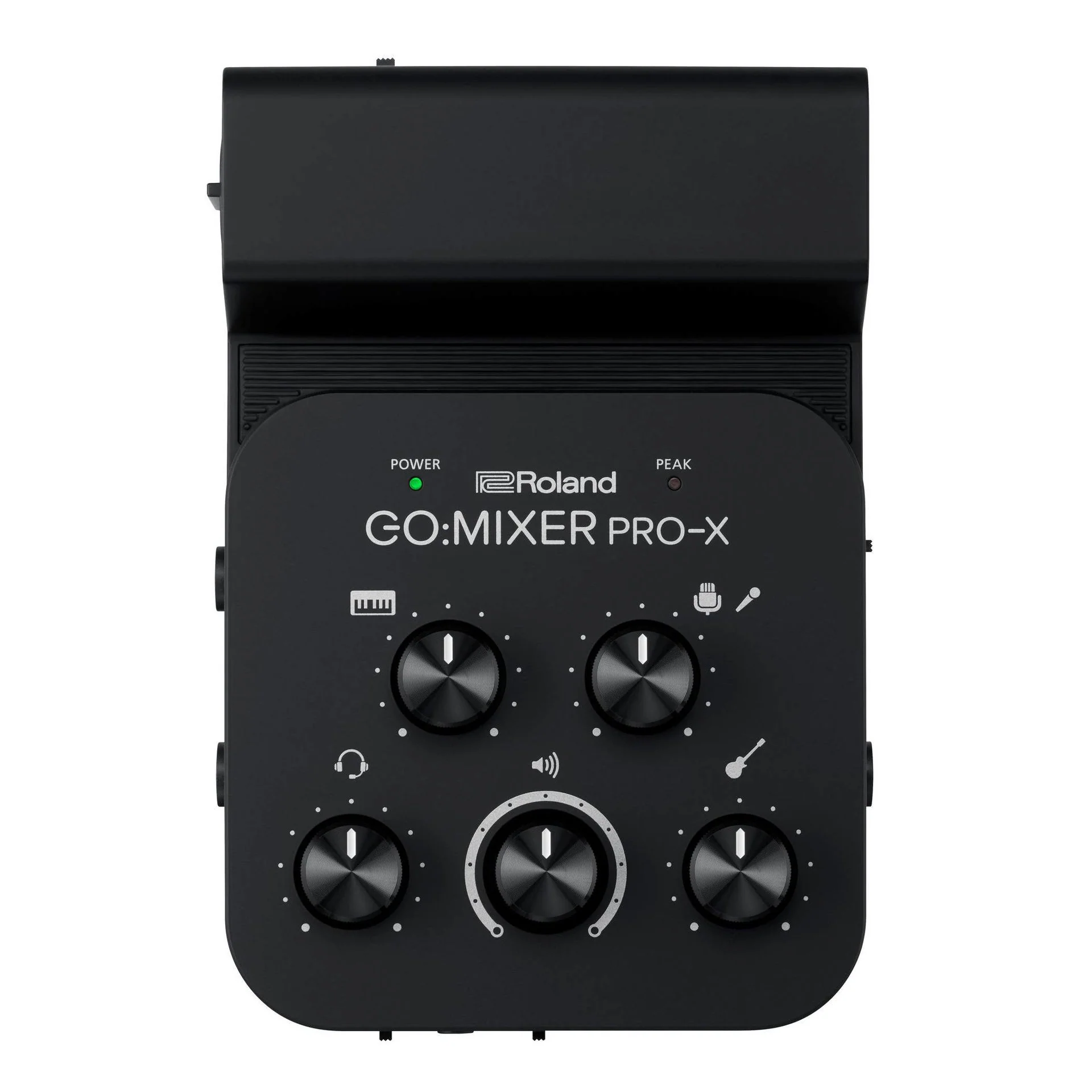

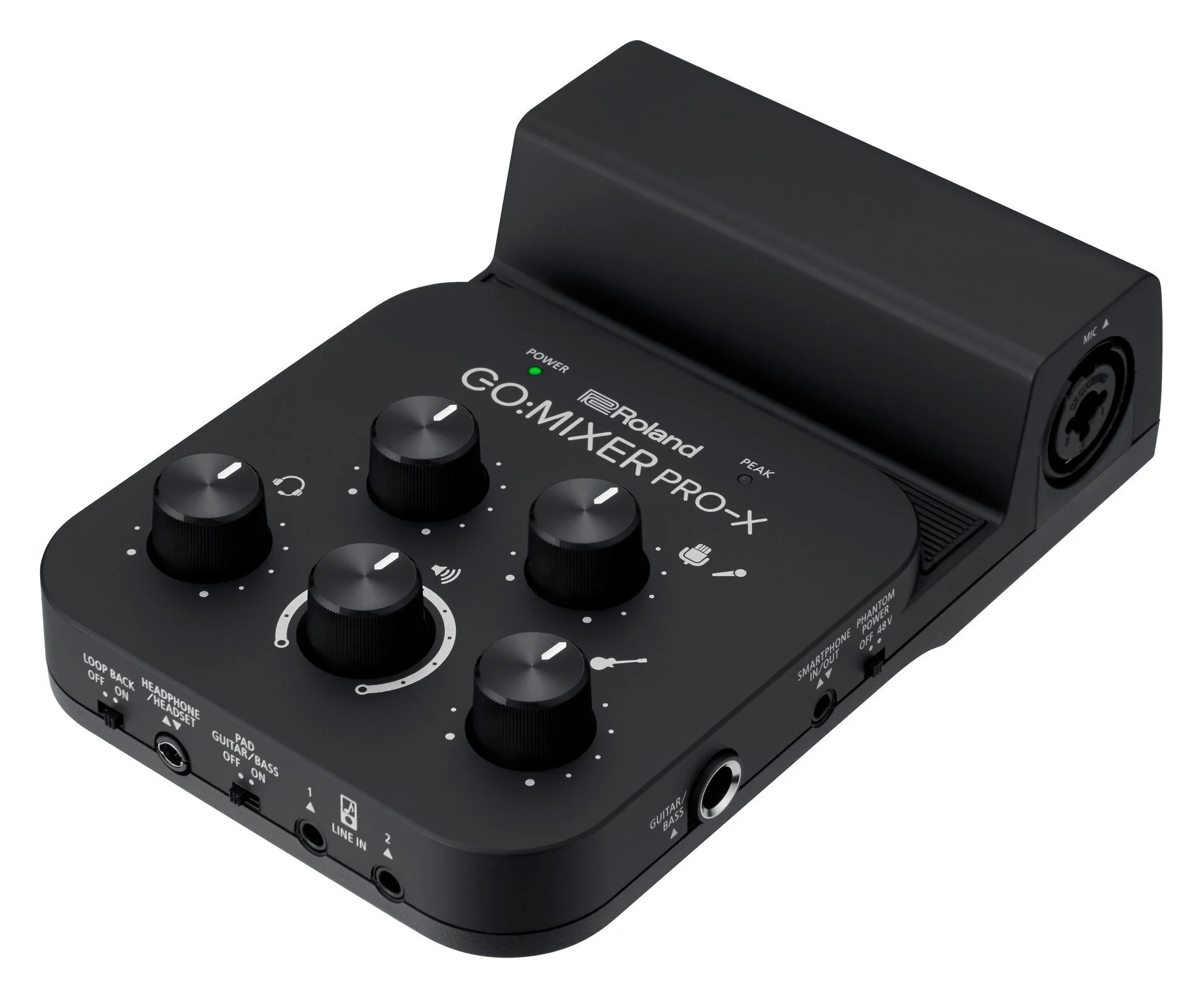

Roland GO:MIXER PRO-X Audio Mixer for Smartphones

If you create music videos, web shows, podcasts, or livestreams with a phone or tablet, you need GO:MIXERPRO-X. Audio quality can make or break your presentation, and your device’s built-in mic won’t cut it if youreally want to impress your listeners and keep them engaged. With GO:MIXER PRO-X, you can connect and mixup to seven audio input sources with studio quality—so you’ll always sound your best no matter where you are.

While audiences will tolerate so-so video quality, they’ll tune out in a flashif the sound is bad. You put a lot ofeffort into what you do, so don’t ruin it with poor audio. Use your phone/tablet for its great video capabilities,and let GO:MIXER PRO-X handle the audio mixing duties with top-quality sound. No matter what kind ofcontent you produce, GO:MIXER PRO-X allows you to show off your creativity in all its glory.

---

Features

• Palm - sized audio mixer for mobile devices
• Multiple inputs — connect microphones, musical instruments, and more
• Combo jack supports standard mics with XLR or ¼ - inch plugs; 48 V phantom power available via XLR
• Dedicated guitar/bass input with selectable input pad for active pickups
• Mono/stereo instrument input
• Two stereo line - level inputs with TRS mini jacks
• Mini headphones jack with headset mic support
• Loop Back function for playing along with backing tracks from your mobile device
• USB Micro - B and four - pole TRRS jack for device connection
• Comes with three connection cables: USB Micro - B to USB - C, USB Micro - B to Lightning, and TRRS to TRRS
• Powered by your smartphone or four AAA alkaline batteries
• Easy integration with camera and livestreaming apps
• Also works with Roland Zenbeats and other mobile music production apps

---

Specifications

Number of Audio Channels

• Input: 11 channels
• Output: 3 channels

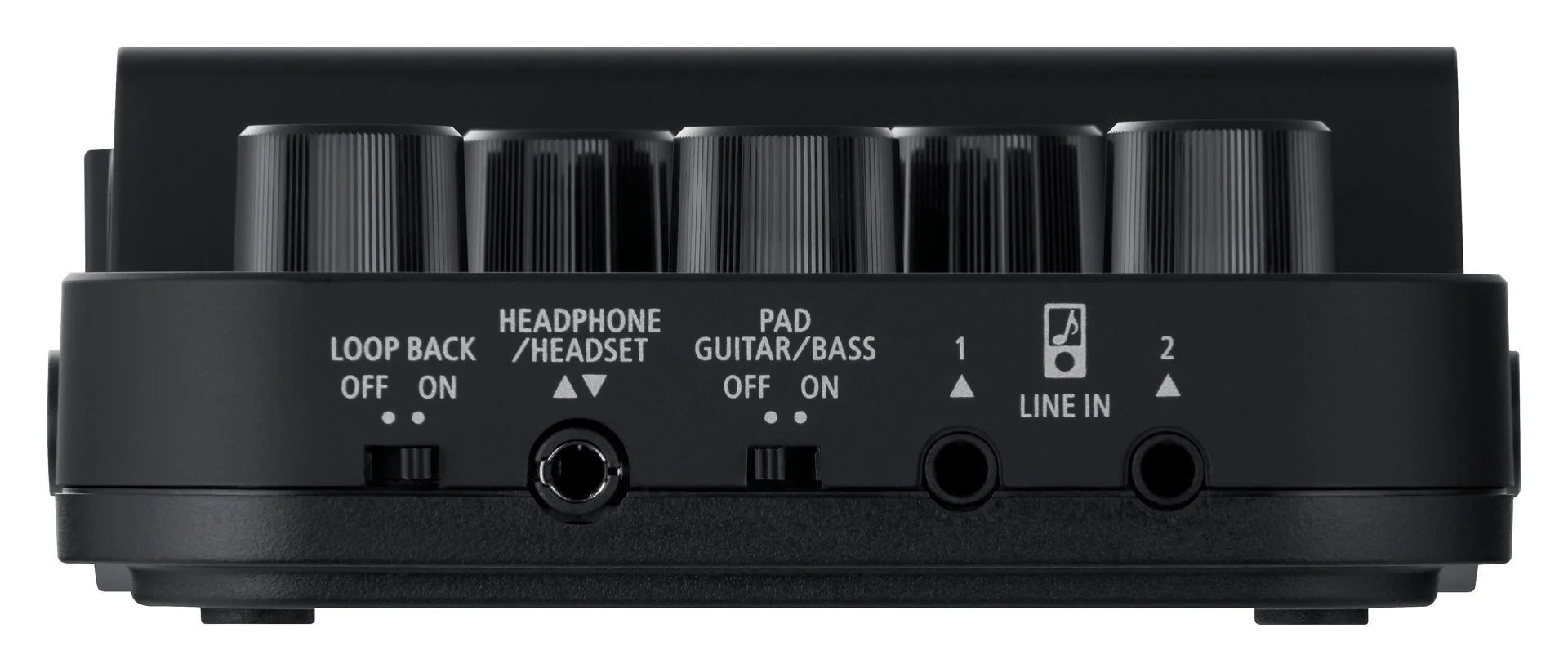

Connectors

• INSTRUMENT (L/MONO, R) jacks: 1/4 inch phone type
• LINE IN 1 jack: Stereo miniature phone type
• LINE IN 2 jack: Stereo miniature phone type
• GUITAR/BASS jack: 1/4 - inch phone type (supports high impedance)
• SMARTPHONE IN/OUT jack: Stereo Miniature phone type (Stereo, CTIA)
• MIC jack: Combo type (XLR, 1/4-inch TRS phone, phantom power DC 48 V, 6 mA max.)
• HEADPHONE/HEADSET jack: Stereo Miniature phone type (Stereo, CTIA)
• USB port: USB Micro-B type

Controller

• INSTRUMENT knob
• GUITAR/BASS knob
• MIC knob
• HEADSET MIC knob
• HEADPHONE/SMARTPHONE OUT knob
• LOOP BACK switch
• PAD GUITAR/BASS switch
• PHANTOM POWER switch
• BATTERY switch

Indicator

• POWER indicator
• PEAK indicator

Power Supply

• USB Bus
• Power

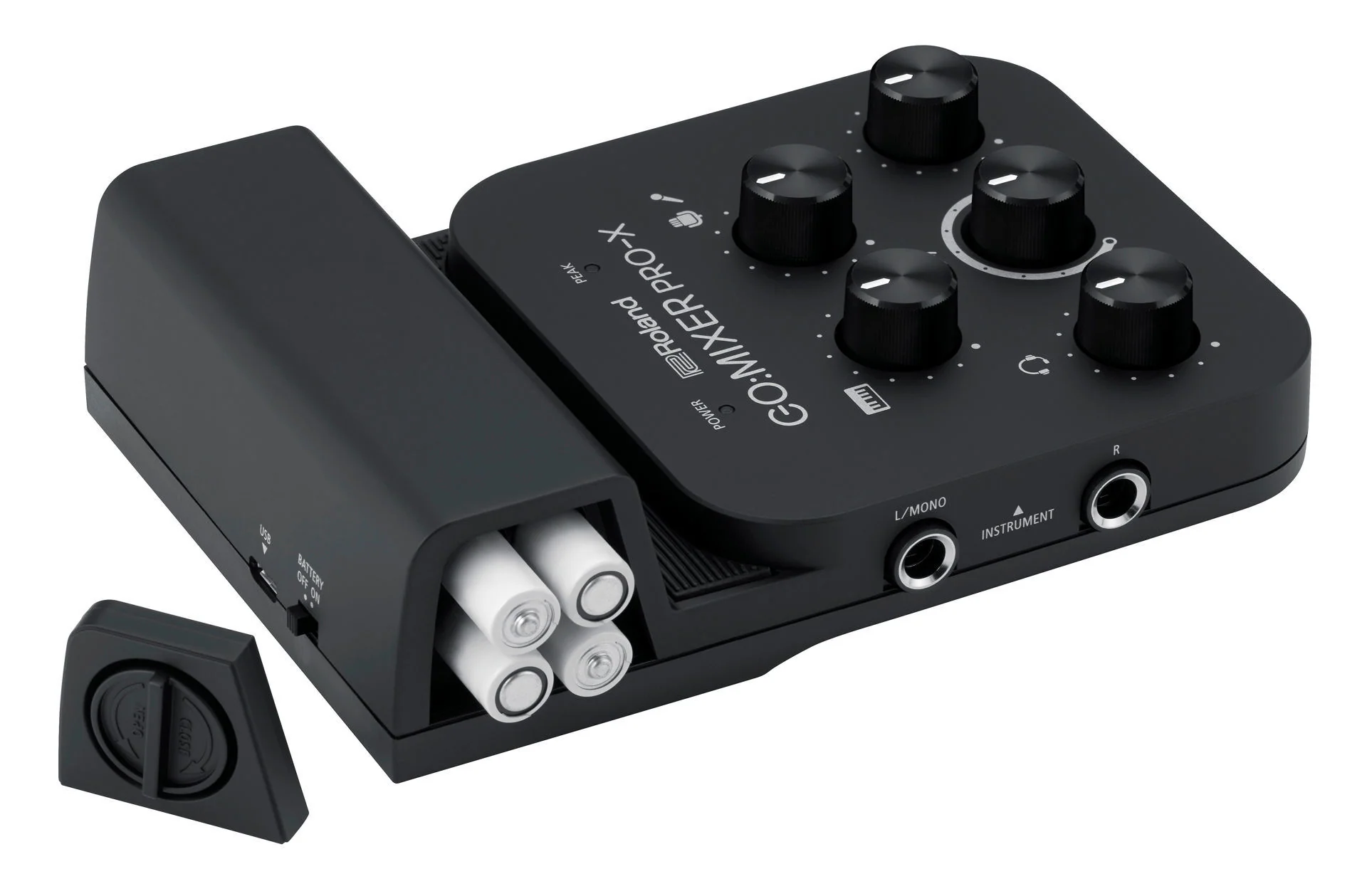

• Alkaline battery (AAA, LR03) x 4
• Rechargeable Ni- MH battery (AAA, HR03) x 4
• Current Draw: 170 mA
• Battery life for continuous use
• Alkaline battery: Approximately 4 hours
  * When setting the [BATTERY] switch to the "ON" position.
  * Differs depending on the conditions of use.

Dimensions

• 104 (W) x 155 (D) x 41 (H) mm
• 4-1/8 (W) x 6 - 1/8 (D) x 1-5/8 (H) inches

Weight (excluding batteries and cables)

• 215 g
• 8 oz

Accessories

• Leaflet "Downloading the Owner’s Manual"
• Leaflet "USING THE UNIT SAFELY"
• Lightn ing to USB Micro-B type cable
• USB Type-C(TM) to USB Micro-B type cable
• 3.5mm TRRS Audio cable
